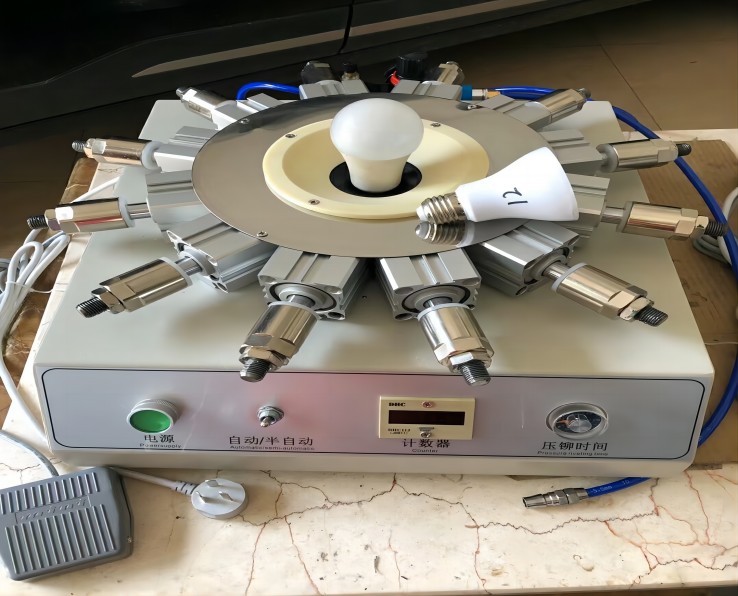

E27 B22 E14 Bulb Cap Crimping Punching Machine For LED Bulb Cap Assembly Production

E14 E27 B22 Bulb Cap Crimping Punching Machine For LED Bulb Cap Assembly Production

1.Usage

Lamp cap hole punching machine is use to tight the joints between the metal lamp cap and the plastic cover by punching holes to press it tightly .

2.Needles optional

The Normal Model is 12 needles with 12 cylinders to punching 12 holes , also have 6 needles and 8 needles if you need .

3.Different Lamp base need clarify .

Models can be for E27,E26 and B22, or E14,E12,E12S and other lamp base ,pls clarify your lamp base before purchase.

Product Descriptions

automatic lamp cap punching machine, lamp base crimping tool machine

1.Use high quality cylinders ,one cylinder control one needle ,the depth of punching needle can be adjustable .

2.Adopt High quality ,high speed ,harden needles ,hardness>=60%.

3.With function of Automatic counting the number of punching lamps .

4.0.3-1 seconds punching a lamp cap .

5. 3-4mm distance electromagnetic induction then punching (automatic operation mode)

6.With automatic and semi-atomatic switch(use foot step after put the lamp base correct into the hole ),you can choose the way you want .

7. Two conjoined air filter processor inside to dry the air .

8.Dimensions :L450*W400*H200 mm

9.Weight: about 18.13kgs

10.Can be available for 220V, 110V(need to notice before order).
